JACK PANELS
MTPBP/TTPBP BACKPANEL SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

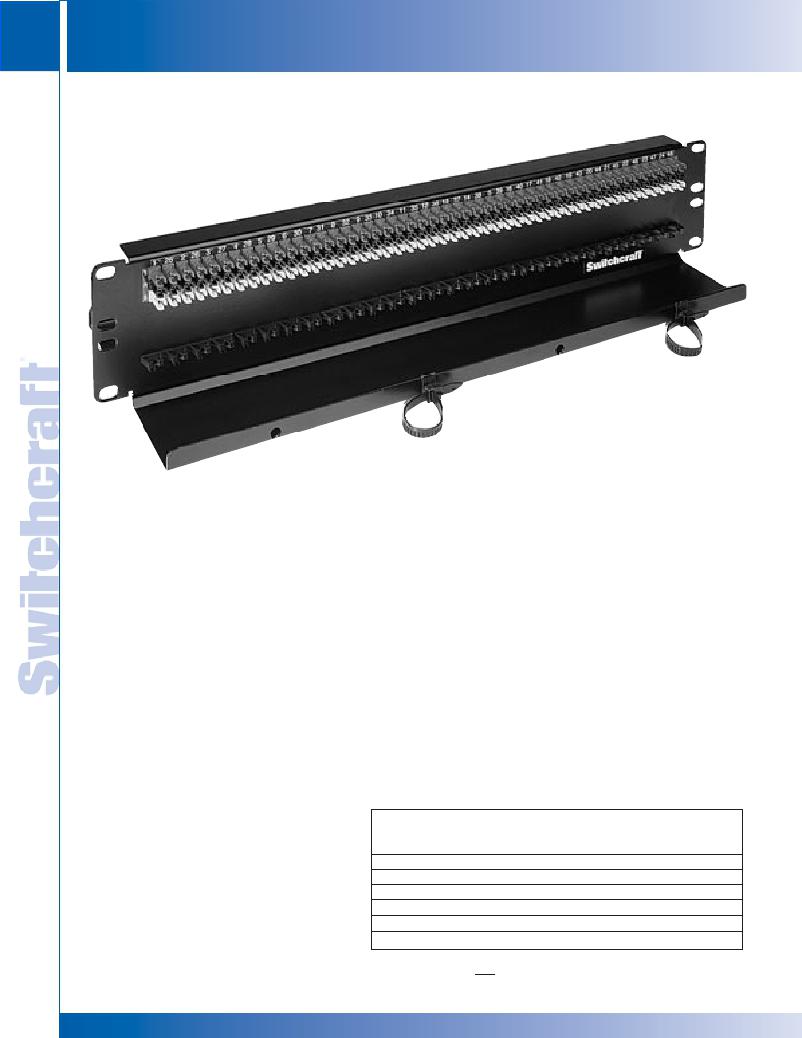

MTPBP/TTPBP BACKPANEL SERIES
MTPH48K3BPNS
The Backpanel Series offers the end user the flexibility of configuring
their own patchbay, or to use as a central patchpoint location.
The backpanels utilize the PPT punchdown and come with
a rugged cable tray.
FEATURES AND BENEFITS
? Allows for custom patchbay configurations
or central patching points
? PPTs have IDCs on both sides for easy
installation
? Rugged, attractive black epoxy-finished
steel chassis
? Cable trays allow for mounting and
securing terminated cable
MATERIALS
Housing: Thermoplastic (UL 94V-0)
Contacts: High strength copper alloy
Backpanels: Black Epoxy coated C.R.S.
Cable Tray: Black Epoxy coated C.R.S.
Ordering Information
SPECIFICATIONS
Part
Sets of
Panel thickness: .093"
Number PPT Terminals
Height
Description
Mounting hole diameter: .187"
Mounting hole spacing (48 IDCs/row):
.340" (Horizontal) x .275" (Vertical)
Mounting hole spacing (52 IDCs/row):
.320" (Horizontal) x .275" (Vertical)
Wire size: #22, 24, 26 AWG Stranded
or Solid (IDC termination)
MTP48K3BPNS
MTP48K3PBNO
MTP52K3BPNO
MTP24K7
TTP96K3BPNS
TTP96K5BPNS
48
48
52
24 x 2
96
96 x 2
3.5"
3.5"
3.5"
7.0"
3.5"
5.25"
T, R, S
T, R, S, TN, RN
T, R, S, TN, RN
+, -, S
T, R, S
T, R, S, TN, RN
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
